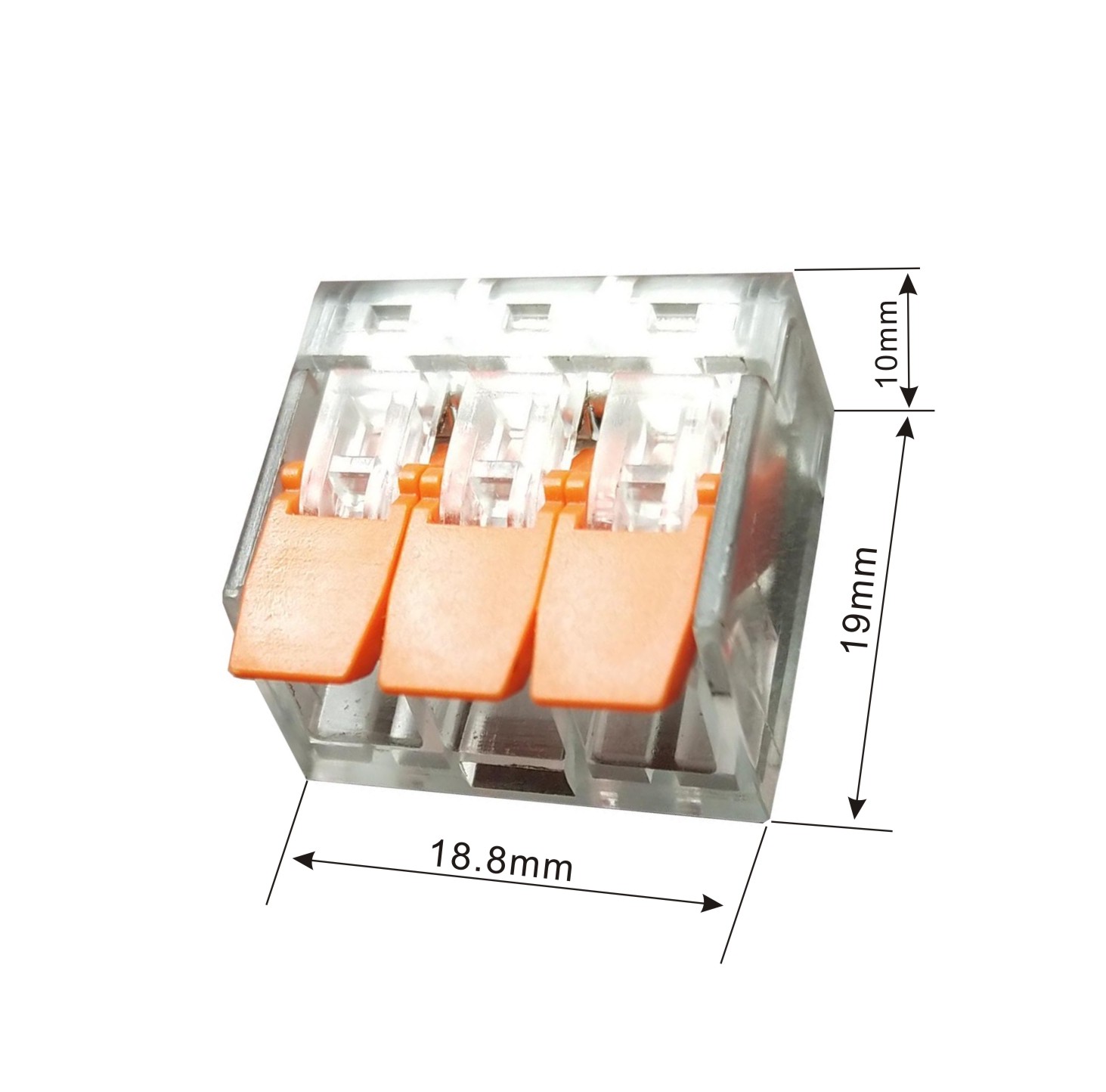

KV221-413
click: 2839
name number unit Safety information 1?Ground power cord??rating?EN 60664??The rated voltage (II / 2) [V]?450?V?Rated pulse voltage (II / 2) [kV]?4?kV?Rated current [A]?32?A?Legend (rating)?(II / 2) ? Overvoltage category II / Pollution degree 2??Conn

Detailed description

technical
Dimension
Ordering
Related
pdf

name	number	unit
Safety information 1?	Ground power cord?	?
rating?	EN 60664?	?
The rated voltage (II / 2) [V]?	450?	V?
Rated pulse voltage (II / 2) [kV]?	4?	kV?
Rated current [A]?	32?	A?
Legend (rating)?	(II / 2) ? Overvoltage category II / Pollution degree 2?	?
Connection technology?	CAGE CLAMP^??	?
Operation type?	Operating lever?	?
Connectable wire material?	copper?	?
Rated sectional area?	4 mm??	?
Single conductor?	0.2 … 4 mm? / 24 … 12 AWG?	?
Multiple conductor?	0.2 … 4 mm? / 24 … 12 AWG?	?
Thin multi-core conductor?	0.14 … 4 mm? / 24 … 12 AWG?	?
Wire stripping length?	11 mm / 0.43 inches ?	?
Total number of connections?	3?	?
The total electricity digits?	1?	?
Connection type?	Lateral connection?	?
width?	18.7 mm / 0.736 inches?	?
height?	8.3 mm / 0.327 inches?	?
depth?	18.6 mm / 0.732 inches?	?
color?	transparent?	?
Flammability class according to UL 94?	V2?	?
weight [g]?	2.527?	g?
Ambient temperature?	85 °C?	?
Maximum continuous operating temperature [°C]?	105?	°C?
T-Marking per EN 60998?	T85?	?
Packing type?	BOX?	?
Main product functions?	Hebelklemme?	?
The product type?	Wire connector?	?
