SAK JXB guide rail type terminal | Products
This current location is:
SAK-16JD
click: 3182
CapabilityApprovalCertification Link StandardULIECVoltage--Current--Wire size12-6AWG2.5-16mm2 T/W/End plate12/50/-mmHeight (NS35:7.5/NS35:15/NS32)50/57.5mmStripping Length16 mmTightening Torque:Screw Thread/Tightening TorqueM4/1.2NmTightening Torque(
pdf download：click down
Detailed description
- technical
- Dimension

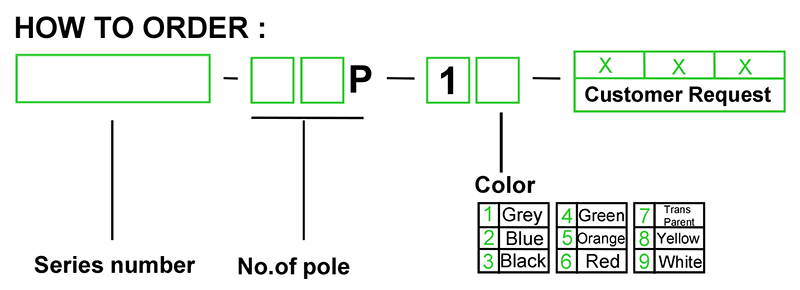

- Ordering
- Related
| Capability | ||
| Approval |
|
 Certification Link
|
| Standard |
UL
|
IEC
|
| Voltage |
-
|
-
|
| Current |
-
|
-
|
| Wire size |
12-6AWG
|
2.5-16mm2
|
| T/W/End plate |
12/50/-mm
|
|
| Height (NS35:7.5/NS35:15/NS32) |
50/57.5mm
|
|
| Stripping Length |
16 mm
|
|
| Tightening Torque:Screw Thread/Tightening Torque |
M4/1.2Nm
|
|
| Tightening Torque(Fixing Screw):Screw Thread/Tightening Torque |
M3/0.5Nm
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
pdf down：click down
