Screw type PCB terminals | Products
This current location is:
KV300R-7.5
click: 2688
ElectricalStandardULIECRated voltage300V450VRated current10A24AWire range22-14AWG2.5mm2 Withstanding voltage3KVMechanicalTorque0.5Nm(4.4Lb.In)Ambient temperature-30°C~+120°CStrip length5-6mmDimensionsPitch7.5mm(.295")Poles2P,3P-24PMaterialHousingPB
pdf download：click down
Detailed description
- technical

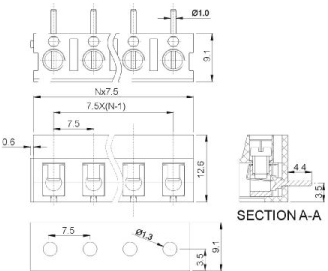

- Dimension
- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
450V
|
| Rated current |
10A
|
24A
|
| Wire range |
22-14AWG
|
2.5mm2
|
| Withstanding voltage |
3KV
|
|
| Mechanical | ||
| Torque |
0.5Nm(4.4Lb.In)
|
|
| Ambient temperature |
-30°C~+120°C
|
|
| Strip length |
5-6mm
|
|
| Dimensions | ||
| Pitch |
7.5mm(.295")
|
|
| Poles |
2P,3P-24P
|
|
|
|
||
|
Material
|
||
| Housing |
PBT,UL94V-0
|
|
| Screws |
M3,Steel, Cr3+Znplated
|
|
| Pin header |
Brass,Tin-plated
|
|
| Wire guard |
Strainless steel
|
|
pdf down：click down
