Lateral connection type terminal | Products
This current location is:Home
> Products
> Guide rail type spring terminals
> Lateral connection type terminal

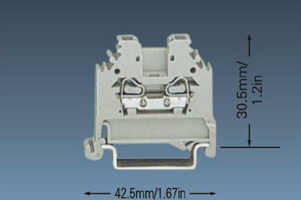

WD2-2.5
click: 2465
CapabilityApproval StandardULIECVoltage600V800VCurrent15A24AWire size28-14AWG0.2-2.5mm2 T/W/End plate5/42.5/2.5mmHeight (NS35:7.5/NS35:15)38/45.5mmRated Surge Voltage/Contamination Class8kV/3Stripping Length9 mmInsulating Material/Inflammability Clas
pdf download：click down
Detailed description
- technical
- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
|
|
| Standard |
UL
|
IEC
|
| Voltage |
600V
|
800V
|
| Current |
15A
|
24A
|
| Wire size |
28-14AWG
|
0.2-2.5mm2
|
| T/W/End plate |
5/42.5/2.5mm
|
|
| Height (NS35:7.5/NS35:15) |
38/45.5mm
|
|
| Rated Surge Voltage/Contamination Class |
8kV/3
|
|
| Stripping Length |
9 mm
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
pdf down：click down
