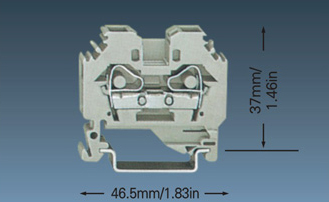

WD2-6
click: 3003
CapabilityApproval StandardULIECVoltage600V800VCurrent30A41AWire size24-10AWG0.2-6mm2 T/W/End plate8/46.5/2.5mmHeight (NS35:7.5/NS35:15)44.5/52mmRated Surge Voltage/Contamination Class8kV/3Stripping Length13 mmInsulating Material/Inflammability Class
pdf download：click down
Detailed description
- technical
- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
|
|
| Standard |
UL
|
IEC
|
| Voltage |
600V
|
800V
|
| Current |
30A
|
41A
|
| Wire size |
24-10AWG
|
0.2-6mm2
|
| T/W/End plate |
8/46.5/2.5mm
|
|
| Height (NS35:7.5/NS35:15) |
44.5/52mm
|
|
| Rated Surge Voltage/Contamination Class |
8kV/3
|
|
| Stripping Length |
13 mm
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
